• Versatile Current Sensing: Accurately measure small and large currents, from sub-milliamp levels to thousands of amps.
• High-Speed Pulse Monitoring: Patented distributed termination technology enables ultra-fast rise time measurement (as short as 2ns).
• Enhanced Noise Immunity & Safety: Double shielding minimizes external noise, making these monitors ideal for high-voltage applications.
• Robust Construction: Sealed models are suitable for high-voltage insulating oil or vacuum environments.
• Broad Compatibility: Works with oscilloscopes, spectrum analyzers, power analyzers, digital voltmeters, ADCs, and more.

High-Precision Current Measurement with BNC Connectivity

• Precision Current Sensing: ±1% accuracy ensures reliable real-time current monitoring.
• BNC Connector for Seamless Connectivity: Works with oscilloscopes, ADCs, spectrum analyzers, and power analyzers.

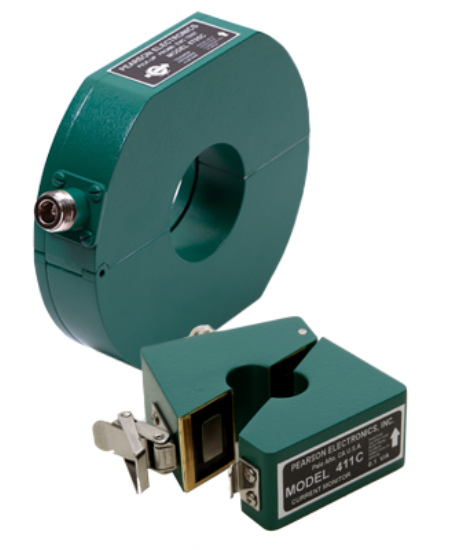

• Clamp-On Design for Non-Intrusive Measurement: Safely monitor live current flow without circuit disruption.
• 50 Ohm Termination Compatible: Output reduces by half when using a 50Ω termination.
• High-Voltage Safety Considerations: Conductive case requires adequate insulation for user safety.

High-Precision Current Sensing with BNC Connectivity

• High-Precision Measurement: ±1% accuracy for reliable current sensing.
• Customizable Configurations: Designed to meet specific user requirements for precision measurement.
• BNC Connector for Easy Integration: Works with oscilloscopes, ADCs, spectrum analyzers, and power analyzers.
• Non-Insulated Conductive Case: Proper insulation must be provided on the monitored conductor.
• 50 Ohm Termination Compatibility: Using a 50Ω termination reduces the output to half.

High-Precision Voltage Measurement Up to 500kV

• High-Voltage Measurement Capability: Supports up to 500kV in insulating oil and customizable calibration for air use.
• Precision Division Ratios: Models with 5000:1, 10,000:1, and custom ratios, ensuring reliable voltage scaling.
• Temperature-Compensated Accuracy: ±1% over 20°C to 80°C, providing stable voltage readings.
• Robust Design for Harsh Environments: Sealed for high-voltage insulating oil use, with custom air calibration available.
• Safe Operation with Ground Loop Control: The outer conductor is isolated from the case, allowing controlled grounding connections.

Precision Pulse Output Up to 500kV

• Wide Voltage Range: Supports 100kV to 500kV pulse outputs for high-energy applications.
• Fast Pulse Transmission: Pulse durations from 0.25 to 50 microseconds, ensuring efficient energy transfer.
• Insulating Oil Immersion: Open-construction design for operation in high-voltage insulating oil, reducing breakdown risks.
• Advanced Overvoltage Protection: Designed with built-in safety factors (50-100%) to prevent damage from overvoltages.
• Reliable Flashover Protection: Corona ring-to-core insulation prevents damage from accidental flashovers.
