Pacific Power Source Inc.

Applications:

• Aerospace & Defense – Avionics, MIL-STD-704, EMC compliance, 400Hz & wild frequency testing
• EV Charging & V2G/V2H Testing – On-board chargers, grid-tied inverters, smart grid simulation
• Energy Storage & Renewable Systems – Home ESS, solar PV/grid-tied inverter testing
• Industrial Power Simulation – Frequency conversion, harmonic analysis, transient simulations
• Smart Grid & Compliance Testing – IEC 61000, RTCA DO-160, IEEE 1547, and more

Applications

• Aerospace & Avionics – Frequency conversion (400Hz & wild frequency testing), MIL-STD compliance
• EV Charging & Power Electronics – On-board chargers (OBC), V2G/V2H testing, battery simulation
• Renewable Energy Systems – Solar PV/grid-tied inverter testing, home ESS & smart grid simulations
• Power Supply & Industrial Testing – AC/DC power supply evaluation, network server & data center testing
• Research & Development Labs – High-frequency power testing, compliance verification, transient simulations

Applications

• Aerospace & Avionics Testing – 400Hz & wild frequency (360Hz-800Hz) compliance
• EV Charging & Power Electronics – AC/DC conversion, V2G, V2H, and OBC testing
• Renewable Energy & Smart Grid – Solar PV inverters, energy storage & grid simulation
• Industrial Power & Manufacturing – AC power supply testing, production line QA
• R&D & Compliance Labs – IEC61000, MIL-STD-704, RTCA DO-160 testing
• Railway Power Systems – 16.6Hz & 400Hz frequency compliance

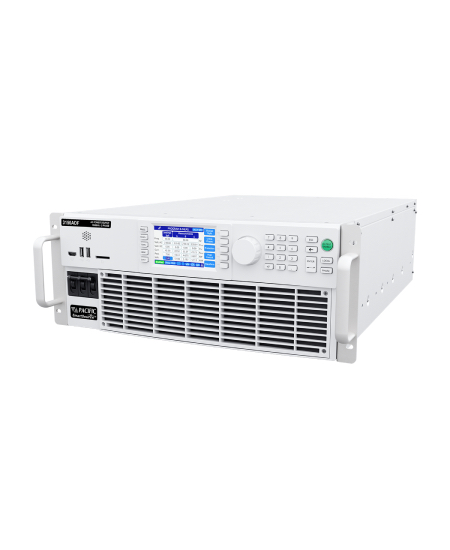

High-Power 4-Quadrant AC & DC Power Source with Load Option

• Powerful & Versatile: 12kVA / kW to 21kVA / kW in a 4U chassis. Parallel units up to 168kVA/kW (single cabinet)or 252kVA/kW (dual cabinet).
• Multi-Phase Flexibility: Supports single-phase, split-phase, and three-phase configurations with AC, DC, or AC+DC output.
• Grid Simulation & Compliance Testing: Emulates real-world power grid conditions, simulating disturbances, harmonics, and interharmonics for accurate renewable energy testing (solar inverters, EV charging, microgrid, and UPS applications).
• Regenerative Efficiency: Over 90% energy recovery back to the grid reduces power consumption and operational costs.
• Advanced Control & Monitoring: SmartSource Suite enables remote control via an intuitive web browser interface with LAN, USB, GPIB, and RS232 connectivity.

High-Power 4-Quadrant AC & DC Power Source

• High Power Density: Available in 30kVA/kW, 45kVA/kW, and 55kVA/kW models, with parallel cabinets scaling up to 550kVA/kW.
• Versatile Output Capability: AC, DC, or AC+DC modes in single-phase, split-phase, or three-phase configurations.
• Dual Constant Power Voltage Ranges:
  • AC Voltage: 0-240V L-N / 0-415V L-L & 0-480V L-N / 0-830V L-L
  • DC Voltage: 0-340Vdc & 0-680Vdc
• Grid Compliance Testing: Meets global standards like IEEE 1547, UL 1741, IEC 61000-3, IEC 61000-4
• Regenerative Power Efficiency: >90% energy recovery back to the grid, reducing power waste and operational costs
• PHIL Interface for Hardware-in-the-Loop (HIL) Testing: High-speed analog I/O for real-time frequency, voltage, and current control.
• SmartSource Suite for Remote Testing: Web-based real-time monitoring and control via LAN, USB, GPIB, and RS232.

4-Quadrant Programmable Load with Energy Recovery

• Powerful & Scalable: 6kVA/kW to 21kVA/kW in a compact 4U chassis. Parallel units up to 168kVA/kW per cabinet or 252kVA/kW in dual cabinets.
• Versatile Load Simulation: AC and DC load capability with single-phase, split-phase, and three-phase configurations.
• Grid-Ready Compliance Testing: Supports IEEE 1547, UL 1741, IEC 61000-3, IEC 61000-4 compliance testing.
• Energy-Efficient Regeneration: Returns over 90% of absorbed power back to the grid, reducing operational costs.
• Dynamic Load Emulation: Simulates linear and non-linear loads, harmonics, transient conditions, and waveform distortions.
• High-Speed Smart Control: SmartSource Suite for real-time test automation and remote monitoring.

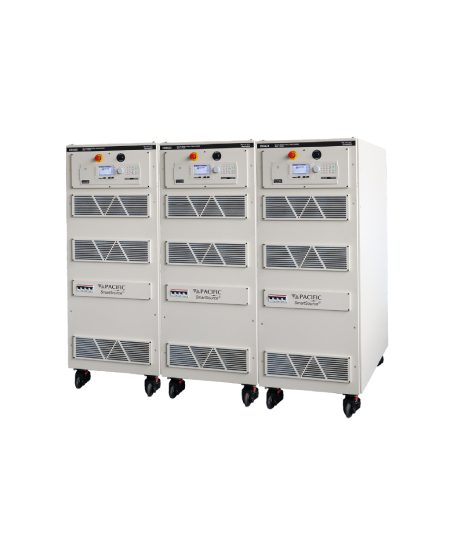

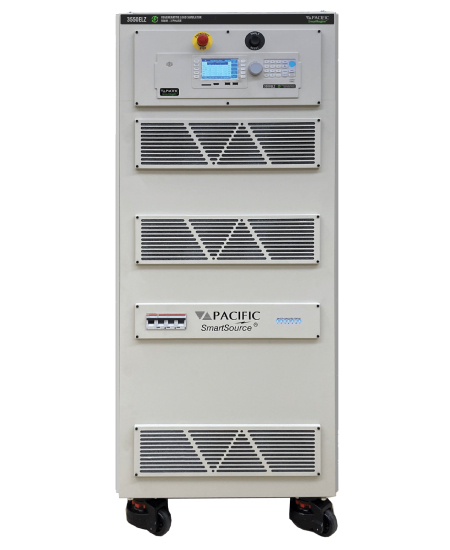

High-Power AC/DC Load Simulator with PHIL Interface

• Scalable Power Density: Available in 30kVA/kW, 45kVA/kW, and 55kVA/kW models, with parallel cabinets up to 550kVA/kW.
• Versatile AC/DC Load Capability: Supports single-phase, split-phase, three-phase, and multi-channel configurations.
• Dual Constant Power Voltage Ranges:
  • AC Voltage: 5-220V L-N / 9-380V L-L & 5-440V L-N / 9-760V L-L
  • DC Voltage: 0-335Vdc & 9-650Vdc
• Advanced PHIL Interface (Option H): High-speed analog I/O for real-time frequency, voltage, and current control.
• Regenerative Power Efficiency: Returns over 90% of absorbed energy back to the grid, reducing operational costs & heat dissipation.
• Dynamic Load Simulation: Simulates harmonics, transient conditions, and waveform distortions for real-world power testing.
• SmartSource Suite for Remote Control: Web-based monitoring and test automation via LAN, USB, GPIB, and RS232.

Unleash the power of modern, versatile, and sophisticated AC sources with our LSX Series – Programmable AC Power Source. These powerhouses come in single and three-phase options, ranging from 1.5kVA to 6kVA. Equipped with an advanced programmable controller featuring a vivid colour touchscreen interface, the LSX Series is not just cost-effective but also fully programmable for basic frequency conversion, advanced AC power line disturbance tests, and ATE applications.

Key Features Provide Application Versatility

• USB, LAN (LXI), IEEE-488.2 and RS-232C with SCPI compatibility
• Compatible with PPSC Studio graphical user interface
• LabVIEW for Windows®/LabWindows® drivers
• Waveform Creation by Harmonic Synthesis
• Waveform Capture (Voltage and Current)
• Harmonic Analysis (Voltage and Current)
• Metering of RMS and Peak Values
• Continuous Self Calibration (CSC)
• Line Sync
• 6:1 Peak Current Capability
• Low Impedance for EN61000-3-2, 3 Testing
• Programmable Output Impedance
• Up to 0-300 VAC Direct Coupled Out
• 1 Phase / 3 Phase Switch Selectable
• 15-5000 Hz Full Power Bandwidth
• Power Levels from 500 VA to 6 kVA standard; 30kVA optional
• Externally Referenced Meter Calibration
• CE Safety & EMC and NTRL Safety Mark

The AZX Series (Regenerative AC / DC Power Source) is a family of high power, single, split and three phase, AC, DC and AC+DC output capable Power Sources with full energy recovery to the AC mains when sinking power from the equipment under test. Available models range from 30 kVA to 440 kVA. Using a modern color touch screen based user interface for ease of use, the AZX Series is cost effective and fully programmable for both basic frequency conversion and advanced AC power line or DC power disturbance test applications requiring up to 1000 Hz fundamental frequency.

The energy recovery capability allows both sourcing and sinking of current and power up to 100% of rated power. Adding the Load Option (Option L) adds full electronic regenerative AC & DC Load programming capability to the AZX.

Phase -Models Kitted for installation into End User’s Cabinet  and Phase -Models including Cabinet and Emergency Power off  (EPO)1

AC, DC, AC+DC, Single and Three – Phase -Models Including Cabinets

Rated Power 60,000 (vA),  Output Power 21,000(w)  Output form  1,2,3Ø, Output Volt-Max 300(L-N)/425 (VAC/VDC)(1), Output AMPS/PHS 166.7 / 83.3 (AAC/ADC)(2), Input Power Form (3) 3 Ø, Panel Height (4) 27 (U) and Weight 527/240 (LBS./KG).
