• Versatile Current Sensing: Accurately measure small and large currents, from sub-milliamp levels to thousands of amps.
• High-Speed Pulse Monitoring: Patented distributed termination technology enables ultra-fast rise time measurement (as short as 2ns).
• Enhanced Noise Immunity & Safety: Double shielding minimizes external noise, making these monitors ideal for high-voltage applications.
• Robust Construction: Sealed models are suitable for high-voltage insulating oil or vacuum environments.
• Broad Compatibility: Works with oscilloscopes, spectrum analyzers, power analyzers, digital voltmeters, ADCs, and more.

High-Precision Current Measurement with BNC Connectivity

• Precision Current Sensing: ±1% accuracy ensures reliable real-time current monitoring.
• BNC Connector for Seamless Connectivity: Works with oscilloscopes, ADCs, spectrum analyzers, and power analyzers.
• Clamp-On Design for Non-Intrusive Measurement: Safely monitor live current flow without circuit disruption.
• 50 Ohm Termination Compatible: Output reduces by half when using a 50Ω termination.
• High-Voltage Safety Considerations: Conductive case requires adequate insulation for user safety.

High-Precision Current Sensing with BNC Connectivity

• High-Precision Measurement: ±1% accuracy for reliable current sensing.
• Customizable Configurations: Designed to meet specific user requirements for precision measurement.
• BNC Connector for Easy Integration: Works with oscilloscopes, ADCs, spectrum analyzers, and power analyzers.
• Non-Insulated Conductive Case: Proper insulation must be provided on the monitored conductor.
• 50 Ohm Termination Compatibility: Using a 50Ω termination reduces the output to half.

High-Precision Voltage Measurement Up to 500kV

• High-Voltage Measurement Capability: Supports up to 500kV in insulating oil and customizable calibration for air use.
• Precision Division Ratios: Models with 5000:1, 10,000:1, and custom ratios, ensuring reliable voltage scaling.
• Temperature-Compensated Accuracy: ±1% over 20°C to 80°C, providing stable voltage readings.
• Robust Design for Harsh Environments: Sealed for high-voltage insulating oil use, with custom air calibration available.
• Safe Operation with Ground Loop Control: The outer conductor is isolated from the case, allowing controlled grounding connections.

Precision Pulse Output Up to 500kV

• Wide Voltage Range: Supports 100kV to 500kV pulse outputs for high-energy applications.
• Fast Pulse Transmission: Pulse durations from 0.25 to 50 microseconds, ensuring efficient energy transfer.
• Insulating Oil Immersion: Open-construction design for operation in high-voltage insulating oil, reducing breakdown risks.
• Advanced Overvoltage Protection: Designed with built-in safety factors (50-100%) to prevent damage from overvoltages.
• Reliable Flashover Protection: Corona ring-to-core insulation prevents damage from accidental flashovers.

• Advanced Formation Schedules – Supports up to 18 test steps with subroutines, allowing complex formation programs for Lithium-Ion and Lithium Polymer cells.
• High Channel Density – Configurable with 512 to 2048 test channels, supporting large-scale production and pilot line testing.
• Accurate Data Logging & Analysis – Logs Voltage, Current, Time, Capacity, Energy, and Cycle with high-speed data acquisition at 200 data points per second.
• Flexible Test Modes – Supports Constant Current, Constant Voltage, Constant Power, and Constant Resistance operating modes.
• Seamless Transition from Constant Current to Constant Voltage – Ensures smooth and accurate formation with no interruptions or spikes.
• High Accuracy & Resolution –
  • Voltage Measurement Range: 0 to 5V
  • Voltage Accuracy: ±5 mV
  • Voltage Resolution: 16-bit
  • Current Resolution: 16-bit
• Intelligent Cell Grading – Customizable grade profiles allow cell grading based on performance, ensuring consistent quality control.
• High Scalability & Flexibility – Combine channels in parallel to increase current capability, supporting dynamic testing requirements.
• Advanced Safety Features – Includes automatic shutdown on power failure, status recovery, and reverse voltage protection for safe operation.
• Turn-Key Solution – Complete system with PC computer and software, ensuring quick deployment and easy setup.
• Comprehensive Data Management – Automatic report generation, data backup, and processing with the MIMS Server Application.

• Enterprise-class server.
• Maximum system uptime
• Designed to run 24×7, 365 days a year
• M7© – Hosts up to 7 virtual machines representing 7 desktop computers
• M22 © – Hosts up to 22 virtual machines representing 22 desktop computers
• Server OS hosted on 2 Enterprise-grade SATA-SSD drives, RAID1
• Virtual Machines hosted on shared array qty of eight (14TB) Enterprise-grade SAS-3 hard drives, RAID6
• 2 Enterprise-grade PSU’s, 2 fans, 2 SATA Drives, 8 SAS-3 drives, all of which are hot-swappable CRU’s (customer replaceable units)

Efficient and Precise Cell Balancing

The Maccor Cell Balancer is engineered to:

• Independently charge and discharge each cell within a string, maintaining equal voltage levels across all cells.
• Optimize battery pack performance by preventing cell overcharging or over-discharging, ensuring longer cycle life and enhanced safety.
• Balance up to 8 cells per unit, with the ability to expand to larger battery packs by connecting multiple balancers in series.

Seamless Integration with Maccor Test Systems

The Maccor Cell Balancer is designed to integrate seamlessly with Maccor’s Mactest32.exe software, allowing users to:

• Incorporate cell balancing steps directly into their test procedures.
• Control and monitor cell balancing with real-time data visualization and automated data logging.
• Customize balancing parameters, including charge and discharge currents, ensuring precision and flexibilityfor different battery chemistries and configurations.

• Advanced Multi-Level Pulse (AMLP) – Design complex pulse profiles with up to 15,000 levels for high-precision battery testing.
• Ultra-Fast Data Collection – Log data at 1 kHz across multiple channels with 20 kHz sampling for the first milliseconds, capturing critical transient events.
• High-Resolution Step Length Control – Specify test steps as short as 750 microseconds with 1-microsecond increments, enabling ultra-fast dynamic testing.
• High-Speed Set Point Lock-In – Achieve setpoint stabilization in as little as 1 millisecond, ensuring accurate and consistent results.
• Customizable Waveforms – Stream external text test files with programmable waveforms, supporting constant current or power modes with 1-millisecond increments and 1-microsecond resolution.
• Unmatched Flexibility – Run multiple unique waveforms in a single test without limitations on the number of levels.
• Comprehensive Data Logging – Log data on current, voltage, time, and other factors continuously, providing comprehensive performance insights.
• Optimized for Complex Testing – Ideal for cycle life testing, pulse power characterization, impedance measurements, and battery performance evaluation.
• Scalable and Modular Design – Expand testing capabilities by integrating multiple Series 6000 units, ensuring scalable solutions for R&D and production environments.

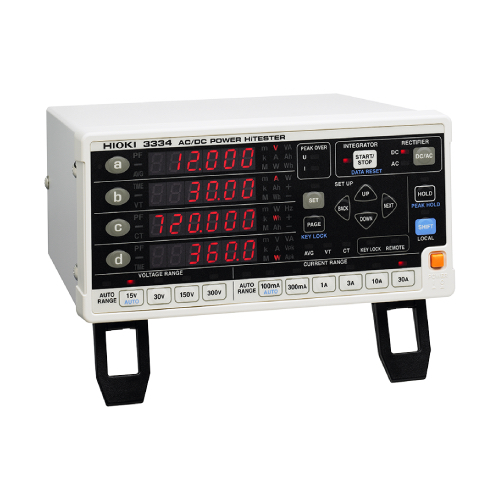

Single Phase Power Meter Compatible with DC Measurement and Current/Power Integration Measurement

Key Features:

• Compatible with the SPECpower® (*1) benchmarking for server power consumption
• DC measurement mode, AC, and AC+DC measurement
• Integration function for current and power
• ±0.1% high basic accuracy (*2) For complete details, please refer to the specifications)
• Extended period of guaranteed accuracy of 3 years
• Complete accuracy over a wide input range

Single-phase, 2U, industrial amplifier/battery simulator

• Bench-sized
• Powered from 120V/230VAC
• Source and Sink (4 quadrant)
• Rugged Design
• 3-Year, No-Fault Warranty

Key Performance Capabilities:

• Drop outs and surges as fast as 1.2µs
• Small signal response up to 1 MHz
• 13.5 VDC at up to 28A
• Field-selectable ±40V, 75V or 150V potential

The First Wide-Bandwidth, High-Power Digital Amplifiers

• Max Continuous Output Current: 300A RMS
• Surge Rating: 2X power at up to 400 V_P or 750A
• Apparent Power Rating: Up to 5X continuous power rating atup to 400 V_P or 750A
• Supply Voltage: Three-phase, 208V ±10%, 60A, 50/60 Hz; 400V ±10%, 15A version available.
• Dimensions (HxWxD): 36.5 x 21.0 x 30.75 inches (92.7 x 53.3 x 78.1 cm)
• Weight: Appx. 540 lbs. (244.9 kg)
