Maintaining lead acid batteries for UPS stations requires the measurement of dozens to hundreds of cells, introducing potential human recording errors and time-consuming data management. Preventing the need to redo measurements and efficiently manage location data can help save time and increase efficiency. Hioki’s latest portable battery tester, BT3554-52, an update of the BT3554-50, helps streamline UPS and lead acid battery diagnostics with high-precision measurements and voice-guided capability.

BT3554-52 features

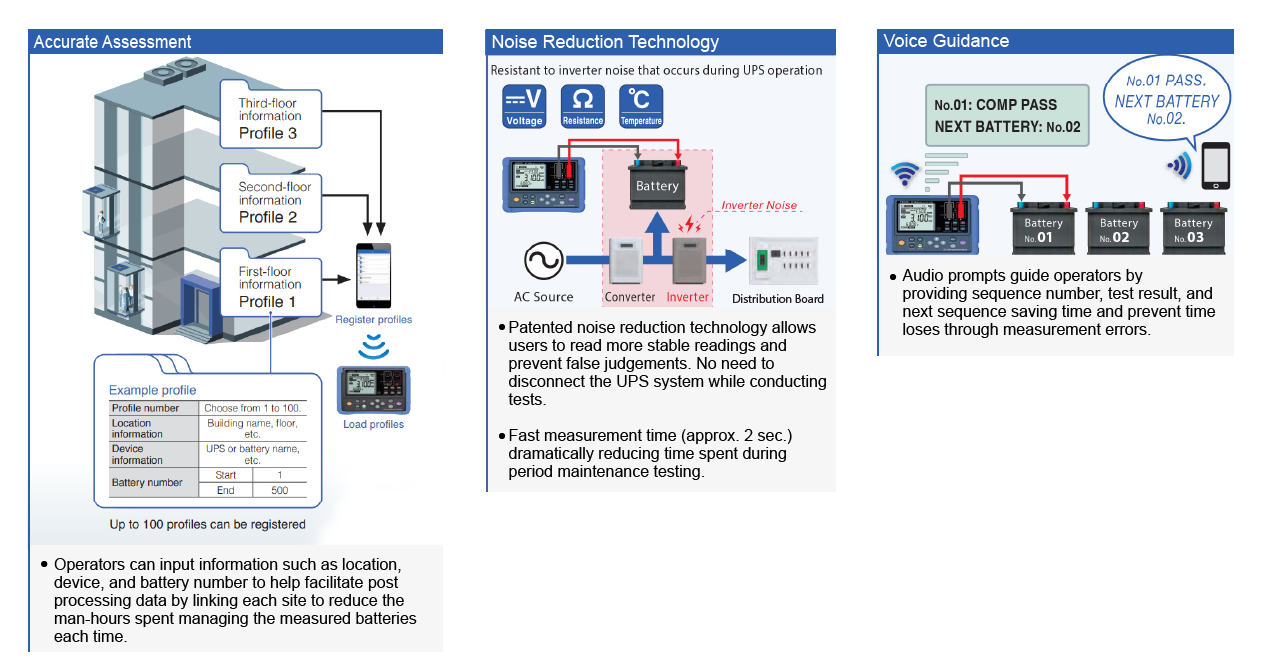

The Battery Tester BT3554-52 Pro Kit comes with new features that will help streamline measurements by providing operators the ability to input location information as well as applications-based audio guidance for measurement sequence and results.

About Hioki

Established in 1935, Hioki has grown to become a world leader in providing consistent delivery of test and measuring instruments through advanced design, manufacturing, sales and service. Click here for more information.

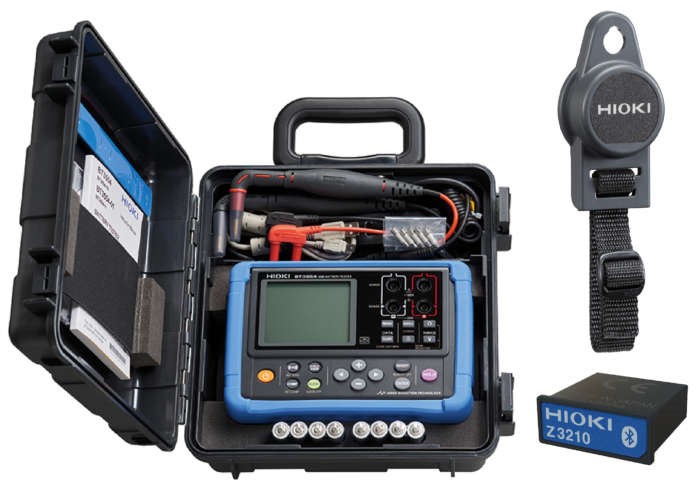

Battery Tester BT3554-52 Pro Kit

Based in Rorschach, Switzerland, Regatron AG has over 45 years of experience in electronics manufacturing and is known for its high-quality modular power supplies. Regatron thus fully appreciates the demands of working with high-power batteries and understands how essential it is to:

• Monitor voltages, currents and temperatures and to keep them within a safe range; and
• Pay close attention to polarity and voltage levels when connecting a battery to a load or battery tester.

Previously, batteries were relatively simple cell stacks. That certainly is not the case today. Batteries are now complex modules with superposed power electronics that require highly accurate data acquisition and fast response times.

What does the G5.BT battery tester series do?

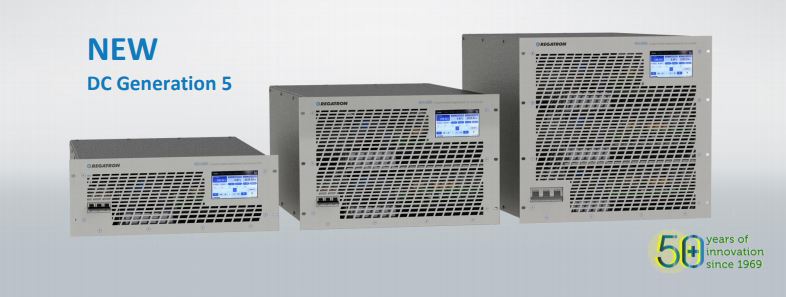

Regatron’s G5.BT Battery Tester Series represents the latest development stage of the company’s DC power supplies. The series was developed in order to test energy storage devices and, in doing so, to meet the requirements outlined above. Some of the technology and exceptional features of the series that helps achieve the goals that inspired the series are outlined below:

• Technologically advanced, fast switching, compact 19-inch power supplies
• Current accuracy of <0.02% FS, additional high-resolution current measurement range
• Voltage accuracy of 0.01% FS
• Current rise time in the 50…200 µs range – even at higher power levels
• Detection of reverse polarity connection
• Overcurrent protection in case of unmatched voltages between battery and tester
• Current ripple modulation up to 10 kHz
• Wide current-voltage range with an auto-ranging factor of 3
• CV, CC, CP, CR, and Ri-Sim control modes
• Power regeneration and a high degree of efficiency

Why you should purchase the G5.BT battery tester series

Ensuring that personnel are safe and equipment is protected is vital. The G5.BT series, therefore, includes the field-proven RPP feature that guards against the two main risk factors that come into play when a battery is physically connected to the battery tester:

1) RPP reliably prevents all serious damage caused by accidental reverse polarity between battery and battery tester.

2) RPP provides overcurrent protection/soft start in case of unmatched voltages between the battery and the battery test system. Another valuable function of the integrated RPP feature is the prevention of deep battery discharge at ‘Voltage Off’ state.

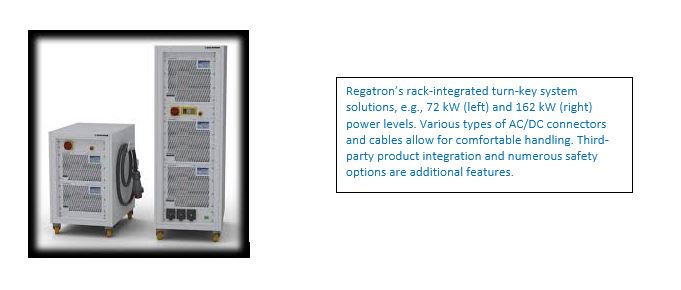

The G5.BT series is modular and features easy scalable systems. The modularity of the series allows it to be easily adapted to ever-changing test requirements. Not only is it possible to reconfigure between parallel, series, and mixed operation, but also to expand the system with additional power supply units or to split it into smaller units. In addition, the G5.BT series features power regeneration and a high degree of efficiency, resulting in significant reduction of energy consumption and heat dissipation. The purchase of a G5.BT Regatron battery tester is thus a solid investment that continues to deliver benefits over the long term.

Applications

The G5.BT Battery Tester Series is bidirectional regenerative and best suited for battery module/pack-testing in laboratory or test bench environments. The excellent current and voltage accuracy, the fast current rise time, and the powerful integrated CAN multi-protocol interface enable tests with a high temporal and electrical resolution. The specialized application software BatControl allows the user to set many test parameter values and even to define complex test procedures. Therefore, the versatile G5.BT series can be used for testing all types of batteries and energy storage systems.

Contact

Click here to learn more about Regatron’s New G5.BT Battery Tester Series or to request a quote.

Regatron’s New G5.BT Battery Tester Series

Aim–TTi is one of the world’s major producers of laboratory power supplies (PSUs). It has been a major technology innovator in PSUs since 1979 and offers products ranging from 30 watts up to 1200 watts. Hundreds of thousands of Aim-TTi power supplies are in everyday use around the world, a testament to the company’s strength and resolve in both research and development and production.

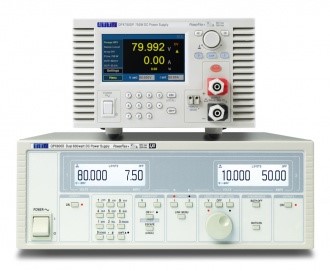

QPX Series: PowerFlex power supplies

The one word that comes to mind when assessing the attributes of the QPX series of power supplies is “flexibility”—at a level well beyond that of conventional laboratory power supplies. This flexibility opens the door to new opportunities for today’s engineers and translates to tremendous value for their companies, year after year.

A conventional PSU has a fixed current limit giving a power capability that drops off directly with the output voltage. With the Aim-TTi PowerFlex design, QPX power supplies make it possible to generate higher currents at lower voltages within an overall power limit envelope. It does this through use of a modified form of mixed-mode regulation. PowerFlex+ uses a multi-phase conversion technique to eliminate the need for a linear final stage and offers an even wider range of voltage/current combinations. QPX power supplies are ideal for both bench-top and system applications with front and rear terminals and a wide range of interfaces. They can, therefore, perform the task of many different power supplies, reducing the need for investment in other units. Indeed, flexibility is the operative word with the QPX series.

QPX series models also have 4 digit V/I meters and an analog end control, resulting in low noise and wrinkle levels.

The QPX series provides options for labs of all kinds. The QPX1200S & SP offer a current capability of 20 amps at the maximum output of 60 volts, and the PowerFlex design offers increased output current with reduced output voltage. The QPX600D & DP offer 1200 watts of maximum power, arranged as two isolated outputs of 600 watts each with PowerFlex+, offering a much wider flexing range of more than 61⁄2:1. The QPX600D can be operated as two entirely independent power supplies, each with its own display. Alternatively, multiple tracking modes are available including series and parallel operation which provide metering of total voltage or total current respectively.

News: new PowerFlex+ 750W DC laboratory power supply

In addition to the above models, Aim-TTi is proud to offer its new PowerFlex+ 750W DC laboratory power supply— the QPX750SP. The latest addition to the QPX series, the QPX750SP is a single output 750W unit housed in a compact 3U half rack width case with front ventilation and low noise fan assisted cooling. Front and rear power and sense terminals make it equally at home on the bench or in a rack.  The RM460 4U rack kit (available separately) houses one or two QPX750SPs with ½U rack spacing above and below providing full ventilation.

PowerFlex+ regulation means that the QPX750SP is capable of voltages of up to 80V and currents up to 50A within a 750W power envelope. A balanced multi-phase converter system minimizes ripple and improves dynamic performance. This provides unusually low noise for the power level, coupled with good transient response.

A comprehensive array of interfaces including USB, LAN/LXI and quasi-analogue are standard. GPIB is available as a factory or customer fit option. The QPX750SP is compatible with Aim-TTi Test Bridge software, providing graphical remote instrument control, logging and sequencing.

Contact

Click here to learn more about Aim-TTi’s QPX series of power supplies or to request a quote.

Aim-TTi’s QPX Series Bench / System DC Power Supplies
